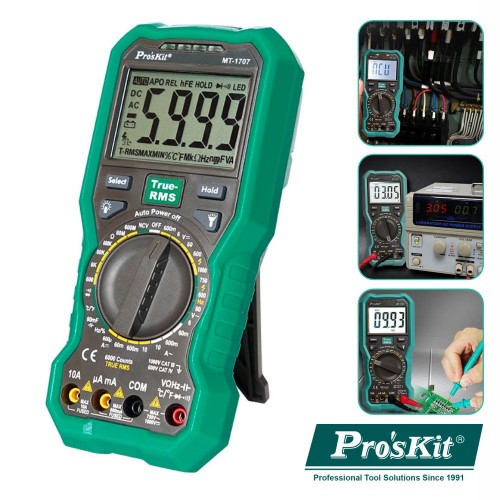

- Multímetro Digital c/ Visor largo retroiluminado 3 5/6 dígitos c/ contador máximo até 5999
- Tensão DC: até 1000V, AC: até 750V True-RMS
- Corrente DC:10A, AC:10A True-RMS, teste Resistência, Frequência e Capacidade, alimentação:
4x AA (não inc.)
- Peso: 0.50 kg
- Dimensões: 192x89x55 mm
| Specifications |
MT-1707 |
| DCV |
600mV/6V/60V/600V/1000V ±(0.5%+3d) |
| ACV TrueRMS |
6V/60V ±(0.8%+3d)
600V/750V ±(1%+10d)
Frequency Response:40Hz-1KHz |
| DCA |
600uA/60mA/600mA±(0.8%+3d)
10.00A±(1.5%+10d) |
| ACA True RMS |
60mA/600mA±(1%+3d)
10.00A±(2%+10d)
Frequency Response:40Hz-1KHz |
| Frequency (Hz) |
9.999Hz~9.999MHz±(1%Reading+3 digits) |
| Resistance |
600Ω/6kΩ/60kΩ/600kΩ±(0.8%+3d) 60MΩ/600MΩ±(1.2%+30d) |
| Capacitance |
1nF~9.999nF ±(4.0%+30d)
10nF~1mF ±(2.5%+10d)
1mF~60mF ±(5.0%+30d)
|
| Temperature |
-20°C~1000°C/-4°F~1832°F±(1.0%+3d) |
| Other Function |
Diode test, Duty cycle, Continuity buzzer, NCV detection, Data hold, Low battery indicator, LED light |
| Power |
1 x 9V 6F22 Battery(not included) |
| Weight |
315g (without battery) |
| Dimension |
190 mm(L)×89 mm(W)×53mm(H) |
| Individual packing |
Color Box |
|
